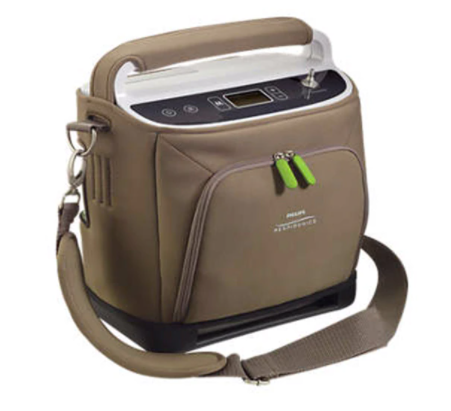

Philips Respironics SimplyGo Portable Oxygen Concentrator
| Oxygen Concentrations |
86 to 97% at all settings %
|
| Pulse mode bolus size |
1=12 ml/1.5=18 ml/2=24 ml/2.5=30 ml/3=36 ml/3.5=42 ml/4=48 ml/4.5=54 ml/5=60 ml/5.5=66 ml/6=72 ml ml
|
| Continuous flow settings |
0.5/1/1.5/2 LPM
|
| Sound level |
≤ 43 dB at pulse setting 2 dB
|
| Size |
29.2 cm x 25.4 cm x 15.2 cm (11.5" x 10" x 6") cm (inch)
|
| Weight with battery |
4.5 (10) kb (lbs)
|
| Operating temperature |
5° to 40°C (41° to 104°F) °C/°F
|
| Storage temperature (unit only) |
-20° to 60°C (-4° to 140°F) °C/°F
|
| Altitude |
Up to 3.048 m/10,000 ft m/ft
|
| Filtration |
Internal bacteria filter
|
| DC power - input |
11.5 to 16 VDC and 18 A max VDC/A
|
| DC power - output |
19 VDC and 7.9 A max VDC/A
|
| AC power - input |
100 to 240 VAC/ 50 to 60 Hz/1.7 A max VAC/Hz/A
|
| AC power - output |
19 VDC and 7.9 A max VDC/A
|
| Power consumption |
150 while charging/120 while not charging W
|
| Alarm types |
Low oxygen purity/No breath/High breath rate/No flow/Low battery/Depleted battery/Wrong battery/System technical fault
|
| Lithium Ion battery |
14.4 VDC 6600 mAh (LiIon), 0.7 kg (1.5 lbs), charge time is approximately 2 to 3 hours per battery from fully discharged
|
| SimplyGo's battery duration |
3.0 (pulse dose setting of 2*) and 0.9 (continuous flow 2 LPM) hours
|
